Description
-

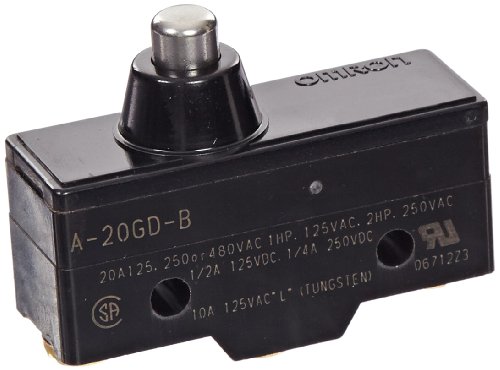

A20GDB
-
SELECTOR SWITCH
-
20A
-
250VAC
-
SHORT SPRING PLUNGER
Configured Specifications
| Detector Shape | Plunger Type | Rated Operating Voltage(V) | 125 ～ 500 |
|---|---|---|---|
| Lever Shape Type | – | DC rated operating voltage(V) | 8 ～ 250 |
| Plunger Shape Type | Top Plunger | Operating Temperature Range(℃) | -25～80 |
| Acquired Standards | UL / CSA | Protection Structure | IP00 |
| Body Material | [Resin] Thermosetting Resin | Force Required for Push Side O.F.(N) | ~7 |
| Motion to Switching P.T.(mm) | 1.3 | Contact Type | Single Pole Double Throw |
| Contact Point Type | Rivet | Contact Material | Silver alloy |
| Mechanical Life(10,000 times) | 100 | Mechanical Operation Frequency(times/min or Less) | 240 |
| Rated Conductance Current(A) | 20 | Main Body External Dimension, Width W(mm) | 17.45 |
| Main Body External Dimension, Height H(mm) | 24.2 | Main Body External Dimension, Length L(mm) | 49.2 |
| Current type | AC/DC | Actuator type | Spring short push button type |
| Specification of Terminal | Screw clamp terminal (internally toothed washer) | Contact spacing(mm) | – |
| Required force for push side, O.F. (detailed numerical values)(N) | 3.92 to 6.13 | Option symbol | – |
